Type: Cleaning Bucket
Raw Materials:Q355B High International Standard
Kelly Box:Kelly box 130mm, 150mm, 200mm (optional), Patented Design
Model:DN600-DN1600
Applicable Formation: Cleaning the bottom of borehole when do the foundation construction.
Introduction:

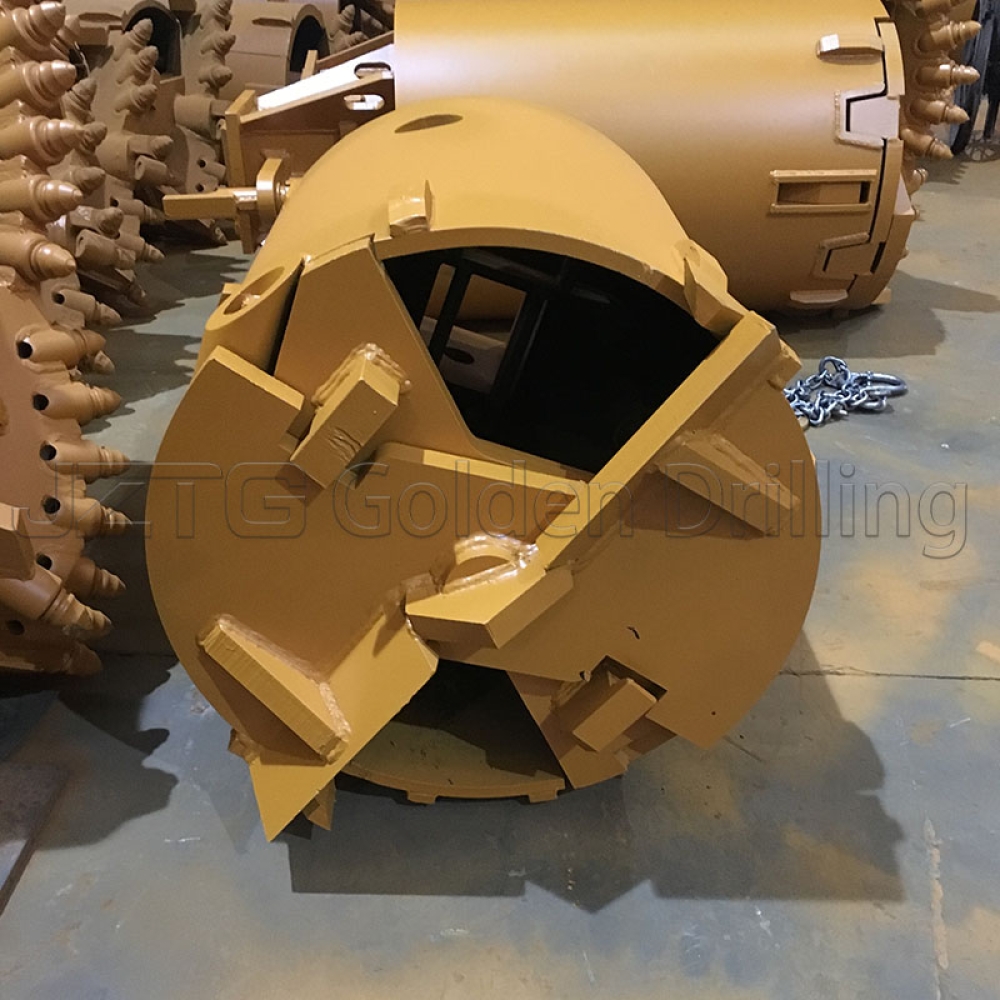

Cleaning bucket also belongs to one kind of drilling bucket tools. Be different from drilling bucket, it is not used for borehole drilling, it is used to clean the bottom of the bored piles after the whole borehole piling work is finished, so we call it Clean Drilling Bucket. Use rotary cleaning bucket to do the slag removal is the fastest method, by reducing the height of the bottom plate in the inlet and outlet of the drilling bucket tool, to collect the borehole bottom sediment.
Applications:
Cleaning drilling bucket is used to clean the borehole bottom, that’s, to clean the borehole bottom sediment after finished the bored piles drilling work.
Parameters of JZTG Golden Drilling Cleaning Bucket:
Type | Model |
Shell Length (mm) |
Shell Thickness (mm) |
Weight/kg |
Cleaning Bucket | DN600 | 800 | 16 | 620 |
DN700 | 800 | 16 | 700 | |
DN800 | 800 | 20 | 800 | |
DN900 | 800 | 20 | 940 | |
DN1000 | 800 | 20 | 1170 | |
DN1100 | 800 | 20 | 1210 | |
DN1200 | 800 | 20 | 1350 | |
DN1300 | 800 | 20 | 1490 | |
DN1400 | 800 | 20 | 1600 | |
DN1500 | 800 | 20 | 1750 | |
DN1600 | 800 | 20 | 1900 | |
Other sizes can be manufactured as per customer demand. |
Advantages:
1-True factory, strong production capacity, factory price and timely delivery;
2-Professional R&D team, OEM available, can be customized depending on kinds of rigs and site conditions;
3-Modern workshop, automated robot welding equipment, advanced welding and design ensure the products longer working life;
4-The raw materials we used are all from top leading raw steel factory to guarantee the high structural strength of our drilling bucket;
5-Good roundness of the cylinder, durable quality and high work efficiency;
6-The enhanced protection block design could enhance the connection between the bucket body and the bucket top;
7-Simple operation, high working efficiency, construction method technical guidance.
JZTG Golden Drilling Workshop Show:
|
|
|
|
|
|
|
|
|
For other details contact JZTG freely.
