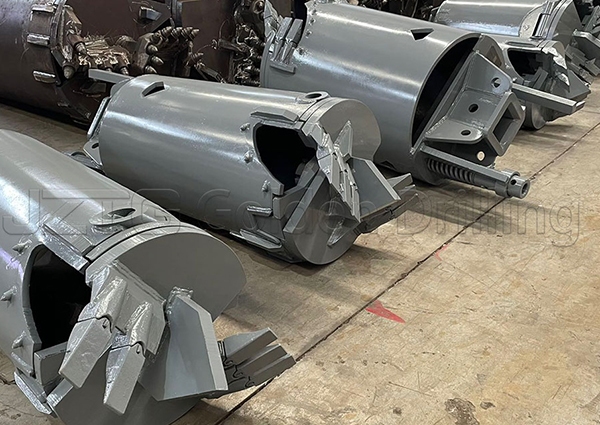

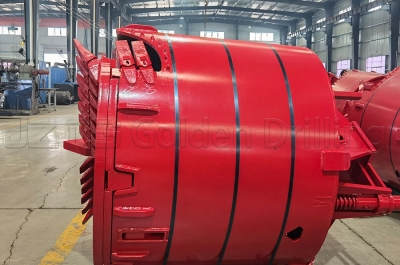

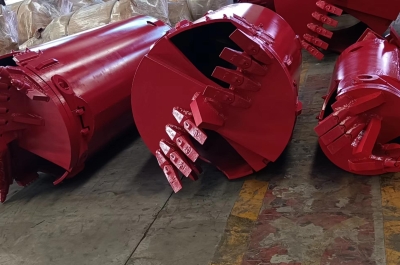

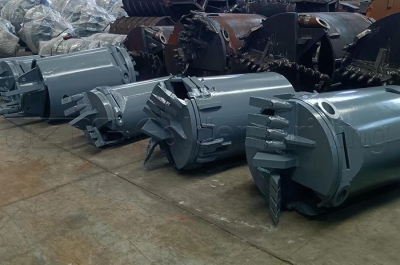

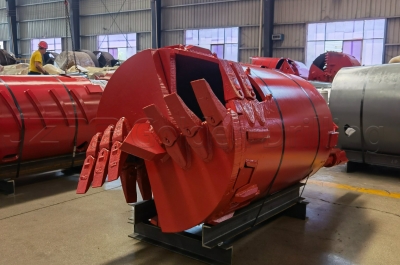

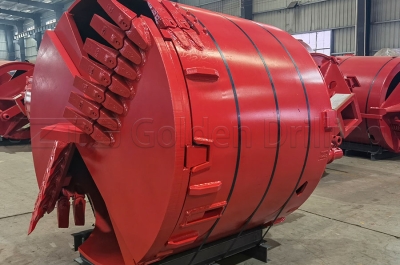

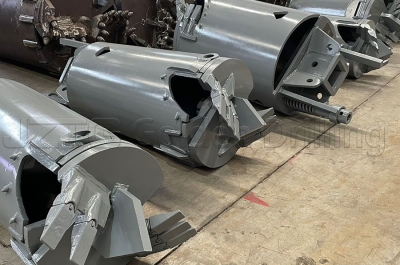

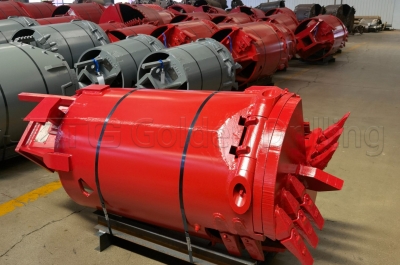

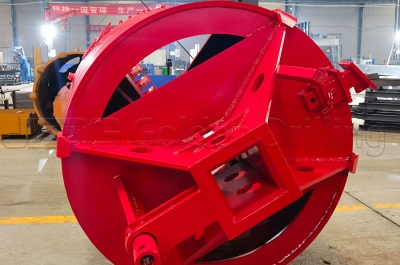

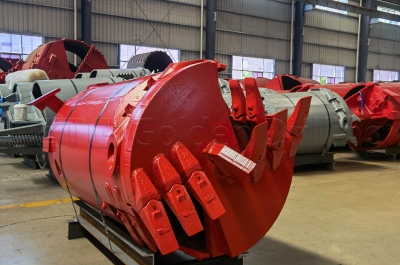

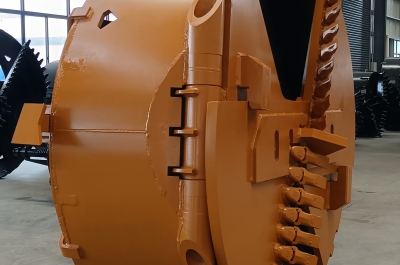

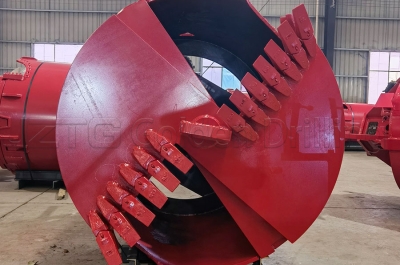

Soil Drilling Bucket for clay, silt, loose to medium borehole foundation piling
Soil Drilling Bucket for clay, silt, loose to medium borehole foundation piling
Soil Drilling Bucket for clay, silt, loose to medium borehole foundation piling
Soil Drilling Bucket for clay, silt, loose to medium borehole foundation piling
Soil Drilling Bucket for clay, silt, loose to medium borehole foundation piling
Soil Drilling Bucket for clay, silt, loose to medium borehole foundation piling
Soil Drilling Bucket for clay, silt, loose to medium borehole foundation piling
Soil Drilling Bucket for clay, silt, loose to medium borehole foundation piling
Soil Drilling Bucket for clay, silt, loose to medium borehole foundation piling
Soil Drilling Bucket for clay, silt, loose to medium borehole foundation piling

Soil Drilling Bucket for clay, silt, loose to medium borehole foundation piling


Type: Single-bottom/Double-bottom double cut (Single-cut for optional)

Raw Materials: Q355B High International Standard

Kelly Box：Kelly box 130mm, 150mm, 200mm (optional), Patented Design

Model：DN600-DN2500

Applicable Formation: For water-bearing cohesive and non-cohesive soils, Clay, Silt, Loose to medium dense sand and gravel, up to coarse gravel.



Request information on the tools

Download the PDF with the technical data

Watch the video

Categories:DRILLING BUCKET
Add To BasketGet The Price
Description FeaturesParametersWorkshopPacking&DeliveryInquiry


Introduction:

Drilling buckets are mainly used for drilling water-bearing sandy soil, sludge, clay, muddy sub clay, sandy gravel, cobble, and weathered soft formation. The drilling bucket tools can be designed into cylindrical type and conical type according to bucket diameter, type of drilling rig and soil conditions. The opening and closing device can be operated mechanically. The welding angle of bucket teeth can be designed according to formation conditions.

The cutting bottom plate of JZTG drilling bucket through full design calculation and continuous product testing, which could achieve high cutting efficiency and reduce the wear probability.

JZTG universal kelly box and disconnect contact unlocking mechanism, also double cambered positioning cutting surface and so on all have proprietary designs, which could maximize the advantages of rotary rig drilling bucket tools.







Applications:
Suitable for different brands of kelly bars and rotary drilling rigs bored piles drilling job. Can be used in cohesive and non-cohesive soils, clay, silt, loose or medium dense sand and gravel, etc.

Parameters of JZTG Soil Drilling Bucket:

Type Model Weight/kg Shell Length
(mm) 		Shell Thickness
(mm) 		Teeth Qty
Soil Drilling Bucket (Type C) 600 650 1200 16 4
700 720 1200 16 4
800 910 1200 20 5
900 1000 1200 20 6
1000 1180 1200 20 7
1100 1320 1200 20 8
1200 1550 1200 20 9
1300 1700 1200 20 10
1400 1880 1200 20 11
1500 2090 1200 20 12
1600 2260 1200 20 13
1800 2720 1000 20 15
2000 3000 1000 20 17
2200 3550 800 20 19
2500 4450 800 20 22

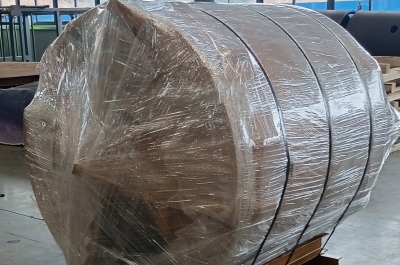

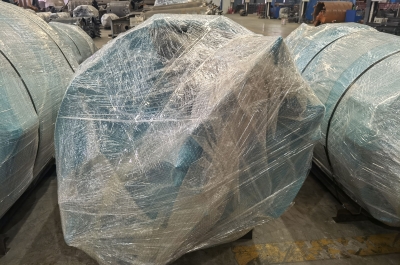

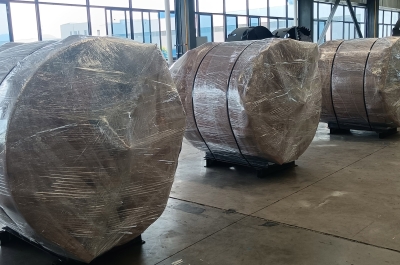

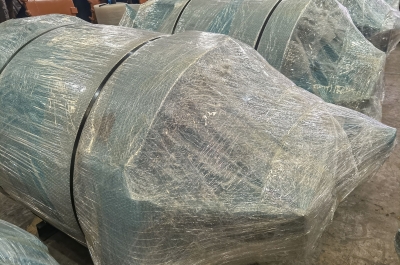

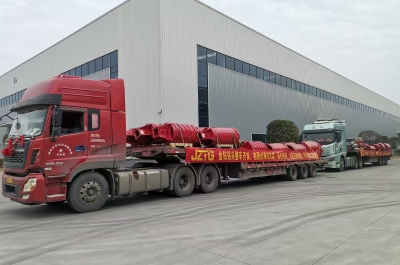

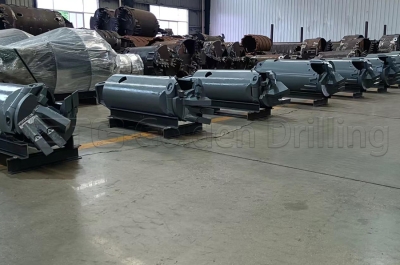

JZTG Soil Drilling Bucket Packing&Delivery Show:

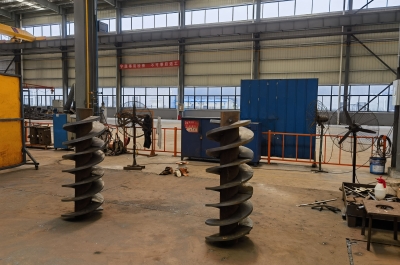

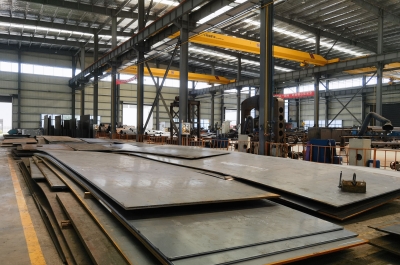

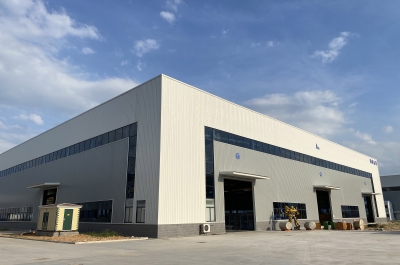

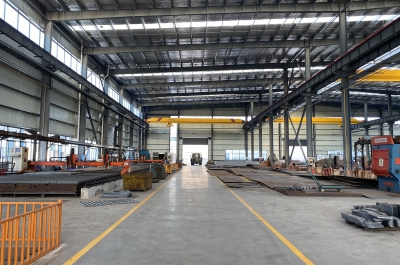

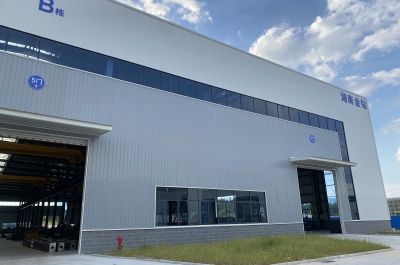

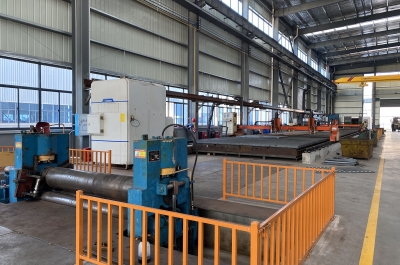

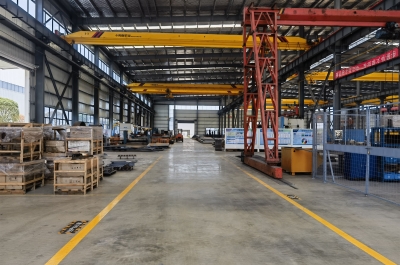

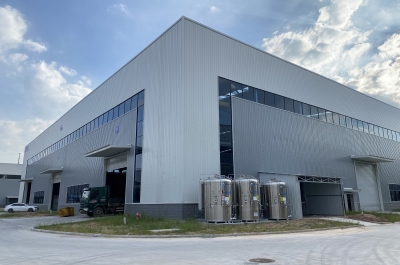

JZTG Workshop Show:











Advantages:

1-True factory, strong production capacity, factory price and timely delivery.

2-OEM available, professional R&D team.

3-Modern workshop, automated robot welding equipment

4-Double support plate unlocking design, enhanced protection block, disconnect contact unlocking mechanism...factory unique patent designs.

5-Top quality raw materials, high international standard steel plate

6-Double cambered positioning cutting surface, professional experience in optimizing the angle of drilingl teeth

7-Simple operation, high working efficiency, construction method technical guidance.



Model of drilling teeth for choose: Clay Teeth:18TL, 18HD, 25VIP, 18VIP, 25T, 25HD, 22T,833-18,855,etc..



The original JZTG plant（Golden Drilling） was founded in 1993, new brand JZTG established 2012. We are the real and the big drilling bucket manufacturer in China.
Choose JZTG, you are choosing to purchase from factory directly.
You will get: Factory Pirce, Professional OEM, Quality Production and Timely Delivery directlyl.

Type Model Weight/kg Shell& Length
(mm) 		Shell& Thickness
(mm) 		Teeth& Qty
Soil& Drilling& Bucket& (Type& C) 600 650 1200 16 4
700 720 1200 16 4
800 910 1200 20 5
900 1000 1200 20 6
1000 1180 1200 20 7
1100 1320 1200 20 8
1200 1550 1200 20 9
1300 1700 1200 20 10
1400 1880 1200 20 11
1500 2090 1200 20 12
1600 2260 1200 20 13
1800 2720 1000 20 15
2000 3000 1000 20 17
2200 3550 800 20 19
2500 4450 800 20 22
